Reed space | 150, 170, 190, 230, 280, 340 (cm ) |
The maximum number of weft insertion | maximum weft insertion |
Rate can reach 1235m/min (depending on fabric types); |
|
Weft | short fiber7 to 60tex ( 80 to 10Ne ) (need additional device if below 10) |
Long fiber | 5 to 44tex (40 to 400den ); |
The main transmission | use AC starting torque motor direct starting, slow forward and reverse running |

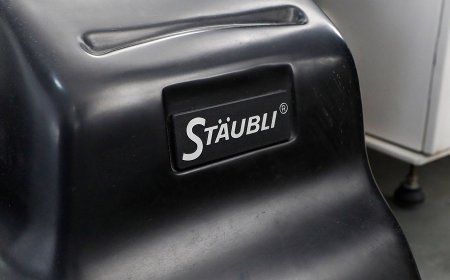

Shedding | crank, cam, electronic dobby, jacquard |
Beating-up | bilateral four connecting rod, the six connecting rod beating-up |
Let-off | electronic let-off |
Take up | electrical |
Stops | 6 lines of electronic stopping device |
Weft stop | double weft detection |
Weft supply | single color, two-color,four-color mixed free weft, weft |
Sevage | leno (rough and plain) |
Electrical control | using programmable computer controller as the core,Can set all kinds of weaving parameters |
Lubrication | the big gear, let-off, take-up gear box with the oil bath type lubrication, the other by forced centralized oil supply mode |
Power | 4750px:2.6kw，5750px:2.8kw，7000px:3.7kw |
FAQ
Q1: What fabrics can the TDA-910 air jet loom weave?
A1: The TDA-910 can be arranged for cotton, polyester-cotton blends, denim, wool and other woven materials. Glass fiber, tire cord fabric and airbag fabric need a dedicated engineering review covering yarn data, reed space, shedding, selvage and compressed-air supply.
Q2: What compressed-air data is needed for the TDA-910?
A2: Please provide compressor pressure, air delivery, receiver volume, dryer type and filter grade. Required air volume depends on reed space, loom speed, yarn count, nozzle quantity and fabric construction. Final utility data is confirmed with the machine plan.
Q3: What information is needed for a TDA-910 machine proposal?
A3: Please provide the fabric name, warp and weft yarn count, finished width, warp density, weft density, fabric weight, weft colours, shedding method, selvage type and planned output. Middle East projects should also include local voltage, frequency, workshop temperature and existing compressor data.
Product Advantages
1.Integrated Frame Structure
The TDA-910 uses integrated side frames, rigid cross rails and middle supports. This arrangement limits frame movement during continuous weaving and provides structural support for different reed spaces.
2.Four-Link and Six-Link Beating Options
A four-link beating unit can be used for narrower weaving plans, while a six-link unit can be arranged for wider looms. The final mechanism follows reed space, fabric construction and planned operating conditions.
3.Coordinated Air-Flow System
The main nozzle, relay nozzles and profile reed guide the weft yarn across the shed. Two, four and six-nozzle plans are available according to yarn type and weft colour requirements.
4.Electronic Warp and Cloth Control

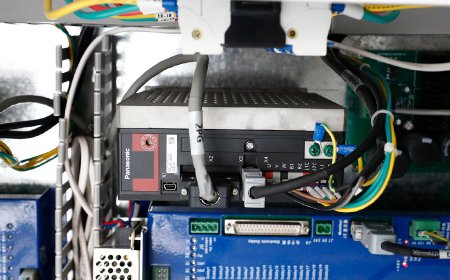

Servo-driven electronic let-off manages warp tension, while electronic take-up controls fabric pick density through the touchscreen. Weaving settings can be adjusted without replacing take-up gears.
5.External Warp-Easing Adjustment
The external warp-easing unit has a published adjustment range of 0 to 6 mm. The touchscreen displays operating status, process settings and fault information for daily production checks.
