Roller

bearing roller

main feature :

The bearing track is thoroughly grinded. Well radian, small roughneSS.

The bearing works smoothly & stable.

The revolution & vibration decibel of the bearing is 10dB lower than ofcts within the family

Yam evenness is improved and its CV is dropped about 0.1 to 0.4 than thof common products under the same

testing situation.

Wear-resistance, life-time is prolonged and consumption is lower.

Suitable to any kind of grinding fer cots.

Product details
Main technical parameters
Product evaluation

Inquire Now

Product details

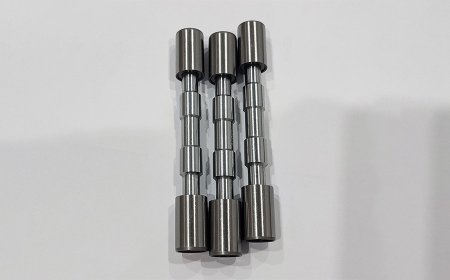

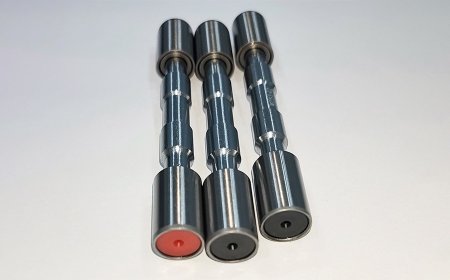

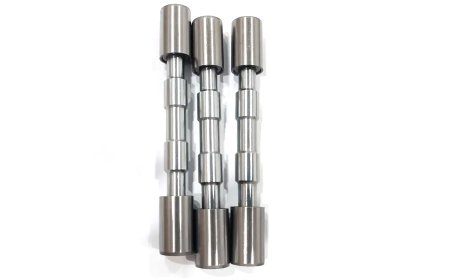

We take our customer's requirements as our final aim. The control standards is high than state standard.The top roller has been meticulously processed at first in China. The quality of complete products is superior to that of products within the family.

The bearing track is thoroughly grinded well radian, small roughness.The bearing works smoothly and stable.
The revolution and vibration decibel of the bearing is 10dB lower than of the products within the family.yarn evenness is improved and its CV is dropped about 0.1 to 0.4 than that of common products under the same testing situation.
Wearing-resistance, life-tome is prolonged and consumption is lower.Suitable to any kind of grinding per cots.

Main technical parameters

Types Ref.no.	Gauge TW	Length Y	Size of ring E
LP1202-1263 615	70	100	30
LP1202-1263 620	75	105	30
LP1202-1263 625	82.5	112.5	30
LP1202-1263 661	75	109	34
LP1202-1263 662	82.5	116.5	34
LP1202-1263 826	90	120	30
LP1002-1249 324	68.4	98.4	30
LP1002-1248 379	75	105	30
LP1002-1248 382	82.5	112.5	30
LP1002-1256 898	90	120	30
LP1002-0956274	100	130	30
LP1002-1248 601	75	109	34
LP1002-1256896	82.5	116.5	34
LP302-012 633	75	109	34
LP302-012 634	82.5	116.5	34
LP302-012 635	90	124	34
LP302-015 201	95	129	34
LP302-013 328	100	134	34
LP302-956 268	65	95	30
LP302-956 270	68.4	98.4	30
LP302-956 271	75	105	30
LP302-956 272	82.5	112.5	30
LP302-956 273	90	120	30
LP302-956 274	100	130	30
LP302-956 276	110	140	30
LP302-0019 135	70	100	30
LP302-0015 895	75	105	30
LP302-0019 136	80	110	30
LP302-0019 137	90	120	30
LP1214-1263 630	75	109	34
LP1214-1263 635	82.5	116.5	34
LP1214-1263 640	90	124	34
LP1014-1253 740	75	109	34
LP1014-1253 741	82.5	116.5	34
LP1014-1253 742	90	124	34
LP1014-0025222	100	134	34
LP1215-1263 650	82.5	122.5	40
LP1215-1263 651	90	130	40
LP1215-1263 652	100	140	40
LP1215-1263 653	110	150	40
LP1215-1263 654	130	170	40
LP1015-1253 744	82.5	122.5	40
LP1015-1253745	90	130	40
LP1015-0025227	100	140	40
LP1015-0025228	110	150	40
LP1015-0025229	130	170	40
LP314-0028 938	68.4	102.4	34
LP314-0025219	75	109	34
LP314-0025220	82.5	116.5	34
LP314-0025 221	90	124	34
LP314-00252222	100	134	34
LP314-0025223	110	144	34
LP315-0025224	75	115	40
LP315-0025225	82.5	122.5	40
LP315-0025227	100	140	40
LP315-0025 228	110	150	40
LP315-0025229	130	170	40
LP1216-1263 655	75	109	34
LP1217-1263 656	82.5	122.5	40
LP1217-1263 657	90	130	40
LP1217-1263 658	100	140	40
LP1217-1263 659	110	150	40
LP1217-1263 660	130	170	40
LP1016-1256 711	75	109	34
LP1017-1256 712	82.5	122.5	40
LP1017-1256 713	90	130	40
LP1017-0013 010	100	140	40
LP1017-0013 011	110	150	40
LP1017-0013 012	130	170	40
LP316-013 007	75	109	34
LP317-013 008	82.5	122.5	40
LP317-013 009	90	130	40
LP317-013 010	100	140	40
LP317-013 011	110	150	40
LP317-013 012	130	170	40
LP302-0010 014	70	104	34
LP302-0010 015	75	109	34
LP302-0010 011	80	114	34
LP302-0010 016	90	124	34
LP1203-1263 664	70	100	30
LP1203-1263 665	75	105	30
LP1203-1263 666	82.5	112.5	30
LP1203-1263 66	90	120	30
LP1003-1256 596	68.4	98.4	30
LP1003-1256 59	75	105	30
LP1003-1256 598	82.5	112.5	30
LP1003-1256 599	90	120	30
LP303-1249 325	68.4	100.4	32
LP303-1248 378	75	107	32
LP303-1248 381	82.5	114.5	32
LP303-0019 890	65	97	32
LP303-0019 891	68.4	100.4	32
LP303-0019892	75	107	32
LP303-0019893	82.5	114.5	32
LP303-0019 894	90	122	32
LP303-0019 895	100	132	32
LP303-0019 899	110	142	32
LP319-015 102	82.5	122.5	40
LP319-015 104	100	140	40
LP319-015 106	110	150	40
LP319-015 108	130	170	40
LP319-017 057	75	109	34
LP319-017 058	90	130	40
LP319-017 426	140	180	40
