OHTC Cleaner series

main feature :

The development of automation and intelligence in textile equipment requires the supporting blow-suction cleaner to have a neat and consistent cleaning effect. The ideal scenario is for the blow-suction cleaner to fully handle the clean- ing work of the textile equipment, reducing product defects, improving product quality and output, and reducing or elimi nating manual cleaning. In addition, it is required that the bloow-suction cleaner is durable, maintenance-free, and re quires little maintenance. The latest developed blow-suction cleaner can be practical, durable, and useful.

_0000_主图

Product details

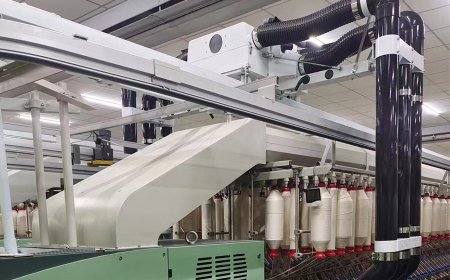

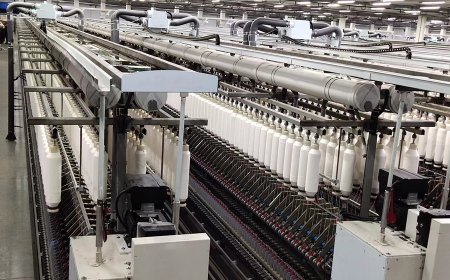

Overhead Travel Cleaner OHTC is the equipment which do the cleaning work of the spinning equipment, reducing product defects, improving product quality and output, and reducing or eliminating manual cleaning. The Overhead Travel Cleaner is durable, maintenance-free, and requires litle maintenance. The latest developed blow-suction cleaner can be practical, durable, and useful.

  •



    The stretching blow nozzle component can accurately clean the fine yarn stretching area

  •



    The adjustable extended blow nozzle can be close to the blow point, and both the height of the blow nozzle and theair volume can be adjusted.

  •

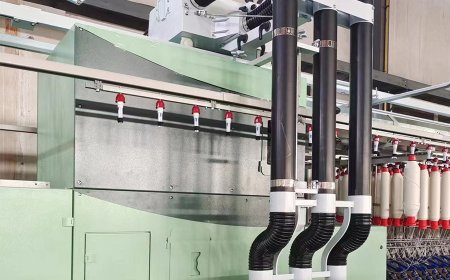

    The yarn frame cleaning horizontal blow pipe is set with corresponding adjustable blow nozzles according to the differ- ent arrangements of the yarn frame.

  •



    The self-cleaning mechanism of the blow-suction cleeaner cleans itself once every round trip (at the head or tail of thecar), saving about 10% of energy.

  •



    The host automatically collects the door opening mecha- nism outside the flower to ensure the stability of the cleaning effect.

Main technical parameters

Item

unit

TD-2A

TD-2B

TD-2C

TD-2D

TD-2E

Motor power

KW

0.75

1.1

1.5

2.2

3

Wind volume

m3/h

1050

1200

1700

1900

2300

Wind pressure

Pa

1500

1800

2400

2600

2880

Noise

dB(A)

≤80

≤80

≤82

≤82

≤82

()peration speed

m/min

8-10

8-12

8-15

10-15

10-15
