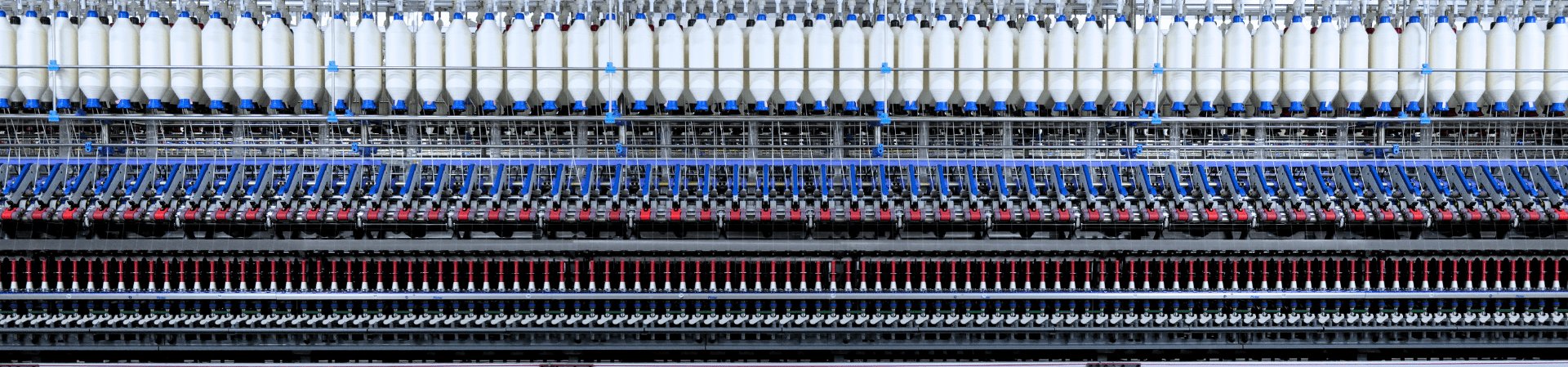

Ring spinning machine
High speed spindle speed unto 25000 RPM
Spindle No. Unto 1824 spindles with auto doffer system
Oil bath gear system for driving system
Higher CSP & LOW IPI
High Quality procession & fittings for smoothly operation with lovnoisy
Compact system, core spun yarn attachment, slub yarn attachment available
Flax Wet Spinning Machine FX508
main feature :
The flax wet ring frame spinning machine FX508 is a highly advanced machine that features several advanced features for efficient and convenient linen spinning.The high-output flax spinning machine offer premium yarns for quality fabrics. It has 256 Spindles.
Product details
The FX508 Flax wet spinning machine is a highly advanced machine that features several advanced features for efficient and convenient spinning. The machine is equipped with an auto doffing system that is adjustable in length, a ring plate automatic reset system, and an automatic stop system after doffing with automatic adjustment of the rear end yarn.
1. Headstock use oblique wheels.
2. Draft roller adopts bearing type, and the other two rows of roller are also made of copper bearing type.
3. Equipped with auto oil dripping device.
4. Japanese Panasonic PLC to control and display data.
5.Increase the stainless-steel parts on the basis of the original FX502 standard.
6. Foot pedal is replaced with aluminum alloy pattern plate, and the rear baffle plate is made of stainless steel.
7. Automatic replacement gears.
8. the rest accessories are the same as the original FX502.
Main technical parameters
Spindle gauge | 88 |
No.of spindle | 256 |
Type ring | PG2-6274 |
Type spindle | D3501,D4501 |
Metric No | 5.5~54Nm |
Draft ratio | 8.5-36 |
Lifting | 210mm |
Twists | 350-800T/m |
Speed of spindle | 5000-10000rpm |
Draft system | Single zong , single apron , two-wsy cylindet |
Twist firection | Right |
Creel | Suspended and seated spindles |
Main motor | 15/7kw |
Overall dimension | 12328(L)x1525(W)x2230(H)mm |
