TFO Twisting machine
High speed Twisting machine
Control panel : Operation ease, simple for winding speed setting and yarn length detecting.
Tension device : Easy to adjust yarn tension by changing tension slices

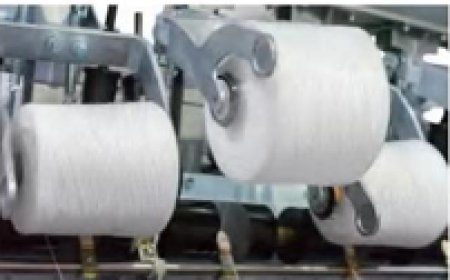

We use pneumatic technology for yarn package to go up when the tube is full or yarn break comes.

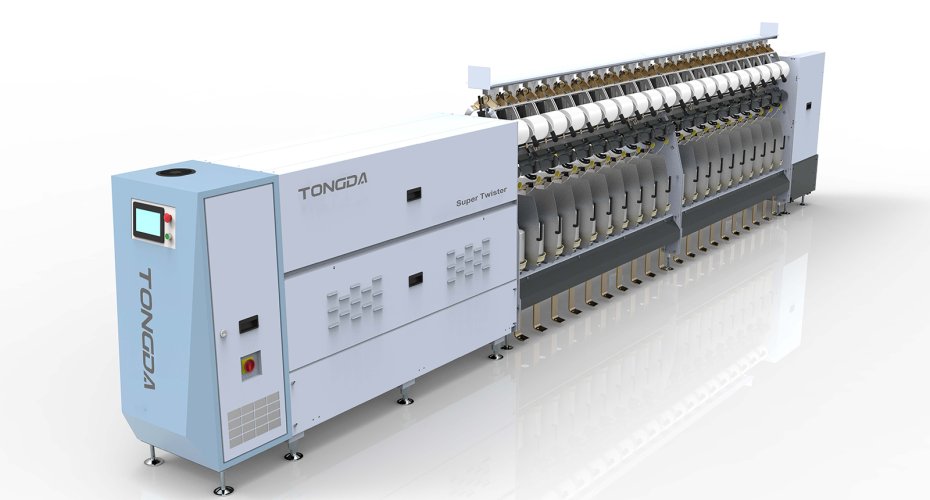

Short Fiber Yarn Two-For-one Twister TD588
main feature :
The Short Fiber Yarn Two-For-one Twister TD588 with max line speed to 80 m/m. Advanced of the type of driving which reduce the load of belt, spindles and bearing add prolong their life. Save energy and reduce consumption. Compact fuselage. reduce the occupation of land. With balloon limiter, the spindles Can running higher Speed.
Product details
1.Special components of the twisting system. Structure of the winding system. Processing accumulation.
2.Doubling machine - The function of the yarn doubling machine is to combine two or more single yarns (cotton, wool, polyester chemical fiber and blended yarns) on the yarn doubling machine to make a yarn bobbin.
3.This product can combine 2 to 3 strands of cotton, wool, hemp, chemical fiber and blended yarns to form a double yarn package. It is suitable for the processing of subsequent processes such as double twister.
Main technical parameters
Suitable yarn range | Ne3/2~160/2 cotton yarn.CVC.wool yarn.blended yarn,etc |
No. of sections | ≤13,standard 10 sections |
Twist(T/M) | 80~2500T/M(Stepless-adjusted) |
Twist direction | S or Z Direction |
Traverse length | 152mm (Stepless-adjusted) |
Angle of wind | Setting direct(Stepless-adjusted) |
Rated power(KW) | Standard 22kw+1.3kw+2.5kw |
Winding bobbin | Bobbin length 170mm 40mm 585mm 668mm 68mm |
Supply bebbin size (inner diameter x outer diameter x length) | Øφ37.5xφ43.5x170(230) |
Spindle tensioner | Capsule |
Start mode | Soft start |
Cradle elavating | Single spindle delayed pneumatic lifting |
Take-up diameter(mm) | Max φ280 |
Take-up speed(m/min) | Max 80(m/min) |
Spindle driving | Direct motor drive,Stepless speed regulation of frequency conversion |
Winding mode | Power-off synchronous electronic system |
