TD1832 High-speed digital printing machine for Textile fabrics

main feature :

1 Printing Control System:Negative pressure control system for print head. Manual lifting cartridge, print head can manual moisturizing after outage. Professional textile printing RIP software : NEOSTAMPA / TEXPRINT.

2 Belt Cleaning System:3 units devices for belt cleaning ,Belt drying device.

3 High Precision Belt moving System:Large diameter rollers for high-speed digital printing machines. Efficient and stable belt anti-deviation system. Precise moving step control.

4 "A frame" Feeding System:Movable press roller for feeding, avoid the imprint. Constant tension control system for fabric taking-up. Air-expansion shaft for fabric feeding and taking-up.

5 Precision, solid and stable structure:Formed steel construction,strong and stable, machine nearly3 tons. Steel beam structure, Linear motor, double THK linear guiderail, carriage moving precise and smoothly, low noise. High-precision plate for prot heads, fast & convenient for installing and replacing the print head. Precision 0.001mm.

6 Automatic Ink Supply System, Easy And Reliable:Automatic ink supply, float switch control liquid level. Automatic alarm, automatic limit stop for printing. With degasser to make ink supply more smoothly.

20240703-103528

Product details

Suitable for all kinds of knitted / woven fabrics

(Cotton,silk,wool,polyester,acetate,nylon,blended fabric,linen,etc)

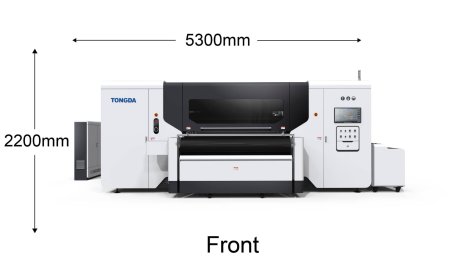

  • Product size

    Product size

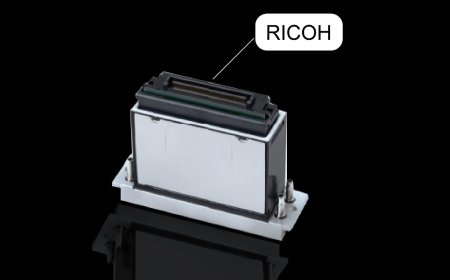

  • Japan RICOH Brand Print Head Made For Printing

    Japan RICOH Brand Print Head Made For Printing

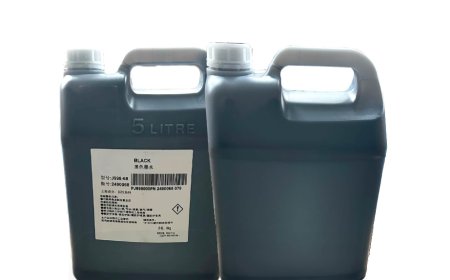

  • Four Kinds Of Ink: Reactive Ink/Disperse Ink/Acid Ink/Pigment Ink

    Four Kinds Of Ink: Reactive Ink/Disperse Ink/Acid Ink/Pigment Ink

    According To The Difeferent Fabrics To Choose Different Inks.

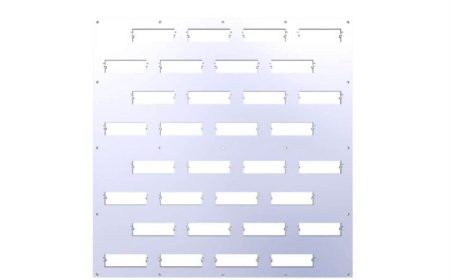

  • Head bottom plate

    Head bottom plate

    The head bottom plate adopts the wire cutting processing technology when the wire cutting, the cutting part only has a very smallheat-affected zone, so the bottom plate will not occur thermal deformaation, and Can achieve very fine cutting, the minimum cutting size can reach about 0.01mm, so as to ensure the printing accuracy.

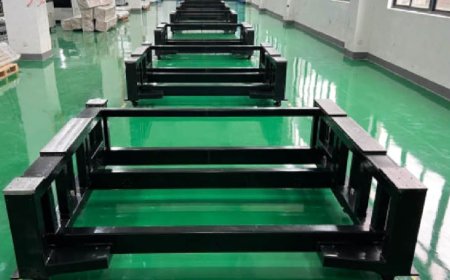

  • Integrated frame

    Integrated frame

    The use of integrated frame can integrate multiple processees intoone operation, thusgreatly shortening the production cycle, improvying production efficiency,avoiding the steps that require processing multiple parts andassembly in traditional processing,improving mnechanical accuracy and reducing production costs.

  • Suitable for all kinds of knitted / woven fabrics

    Suitable for all kinds of knitted / woven fabrics

    Cotton,silk,wool,polyester,acetate,nylon,blended fabric,linen,etc

Main technical parameters

Product mode
TD1832

Print head

Ricoh GEN5E/GEN6
Fabric conveyance modeAdhesive belt with cleaning and heating system
Effective print width1900/2200/2600mm
Maximum printing resolution2400DPI
Speed

Gen6

1 pass:1300m2/h

2 pass:650m2/h

RIP softwareNeostampa/Texprint(ORIGIN)
Printing part introduction

Automatic negative pressure ink supply, automatic car lifting,automatic positive pressure cleaning, automatic moisturizing,sprinkler anti-collision system.

Main ink tank15L
Belt system introduction

Automatic drying and winding system, automatic cleaning guide belt system, anti-pressure roller print, synchronous pressure roller

Dryer unit

3 tiers industry dryer with off plane

Ink Typereactive/disperse/acid/pigment ink
InterfacePower voltageOptical fiber
Print head height

Height adjustable 1.5-30mm,to adapt medium

of different thickness

Power voltage380V, 3L+N+G(with independent reliable effective earth wire)
Power frequency50HZ/60HZ+1HZ
Power Consumption

Printer: 40kw; oven:6KW

Workshop Condition

Temperature:20-30°C, humidity: 50-65%

Effective width





Size


1900mm

2200mm2600mm
Printer5300mm*3450mm*2200mm

(L*W*H)

5700mm*3450mm*2200mm

(L*W*H)

6100mm*3450mm*2200mm(L*W*H)
Dryer

6400mm*3800mm*2700mm.  (L*W*H)

6800mm*3800mm*2700mm

(L*W*H)

7200mm*3800mm*2700mm

(L*W*H)

Ink cabinet

1760mm*700mm*995mm(L*W*H

Weight

Printer:6200Kg

The bakery: 5000kg

Printer:8000KgPrinter:10000Kg
