TD2088 Energy Saving and Environmental Protection Stenter

main feature :

As a textile equipment, the TD2088 Energy Saving and Environmental Protection Stenter has many advantages. In terms of energy saving, it is equipped with an efficient heat recovery system and energy - saving heating elements. For environmental protection, it can purify exhaust gas and operate with low noise. It has excellent process performance, with precise control of temperature, air volume, air speed and tension, and also supports programming of multiple process parameters. In operation, it features high automation, good stability, and is convenient to operate and maintain.

1

Product details

The TD2088 Energy Saving and Environmental Protection Stenter is mainly used in the textile printing and dyeing industry. It can be used for the setting of cotton, linen, chemical fiber and blended fabrics to stabilize the size, improve the hand feel and appearance. After dyeing, it can enhance the color fastness. It can also be used in combination with functional finishing agents to achieve the finishing effects such as waterproof, oil - proof, stain - proof, softening and wrinkle - resistance.

  • Fabric Inlet Frame

    Fabric Inlet Frame

    Fabric inlet combination is combinedby fabric infeed frame, centeringdevice,padder,speed synchronouscontroller,photo-sense abbrectifier(optional).Fabric with low-tension infeed from centering device,settle and dehydrate by padder.Fabric tension between padder andabb rectifier precise controlled byspeed synchronous controller.Photoelectric weft straightener caneffectively correct deformation, bowand skew of cloths produced byprevious stage to meet variousprocess requirements before clothfeeding and stitching.

  • Touch Screen Control Platform

    Touch Screen Control Platform

    The man-machine interface ins simple,humanized and easy to opcration.

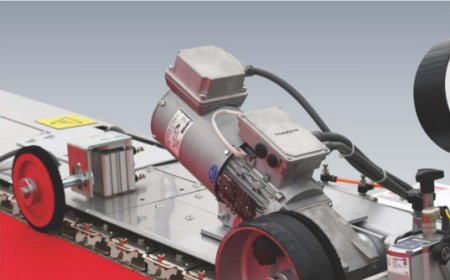

  • Overfeed

    Overfeed

    The top overfeed rate is between-30%- +80% to meet differentrequirements of fabrics.

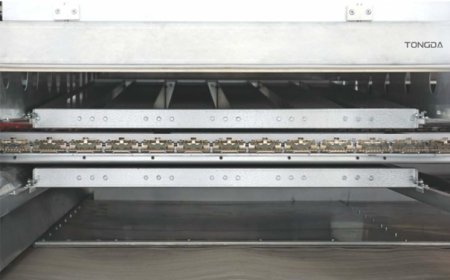

  • Chamber Basic Structure

    Chamber Basic Structure

    Module design is suitable for different requirements

  • Blower-cover unfold combination

    Blower-cover unfold combination

    Specifically design for easy turned edgeand sensitive woven or knitted fabric.

  • Chamber System

    Chamber System

    The insulation panel of the whole machine is made of 150 thick high density heat insulating material, it keeps the heat loss at the lowest state.

  • Fabric Outlet Combination

    Fabric Outlet Combination

    Different fabric outlet combinations to meet process requirements.

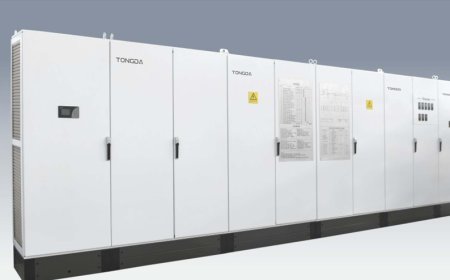

  • Electric Control Panel

    Electric Control Panel

    Vector control, closed loop sensor-less vector control toguantee precis speed characteristic.Excellent overload capability, brake unit inside.Three sets parameter.
