TD368V FILAMENT YARN SEWING THREAD TWISTING MACHINE

main feature :

TD368V FILAMENT YARN SEWING THREAD TWISTING MACHINE suitable for production of sewing thread, etc.

According to different customer needs, we have developed a number of highly targeted models to maximize their work eficiency andsubvert the traditional concept of ring ingot processing.

The clamping tension is uniform, the strength loss is small, the non-uniformity rate is low, and the output is high.

Each spindle is ecuipped with varn breakage and speed detection device, and installed alarm light some models are equipped with wirecutter), strict control of varn auality.

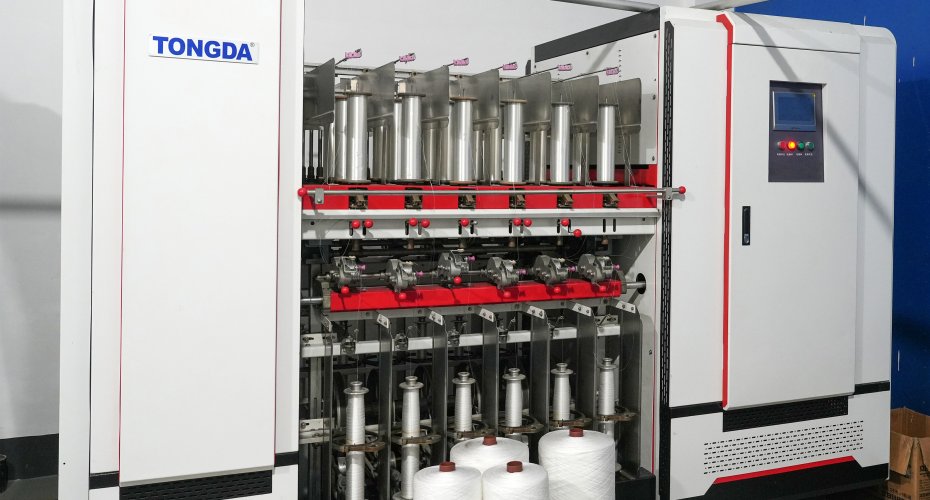

DSC01474
DSC01477
DSC01474
DSC01467
DSC01472

Product details

  • Fast speed

    Fast speed

    The clamping tension is uniform, the strength loss is small, the non-uniformity rate is low, and the output is high.

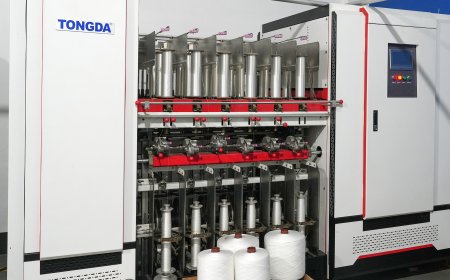

  • High efficiency

    High efficiency

    This machine is designed and manufactured by our company, the second generation of double twist and twinning machine, can be two orthree strands of silk/thread double twist at the same time combined into one strand. mainly used for weaving belt. sewing thread. cordhigh strength silk and other need to the initial double twist process of silk thread twisting processing.

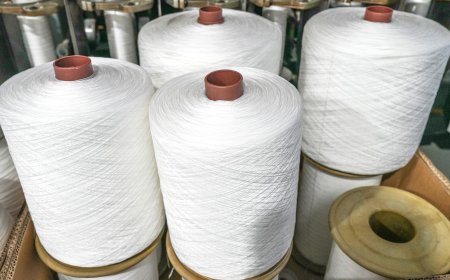

  • High production

    High production

    Each spindle is equipped withvan breakage and speed detection device, and instaled alarm light some models are ecuipped with wirecutter), strict control of yarn quality.

Main technical parameters


Model NumberType lType ll
Spindle gauge180mm225mm
Process materialLong fiberLong fiber
operating modeManual operationManual operation
Joint-stock arrangement2-in-1/3-in-12-in-1/3-in-1
Per-section spindles24 Tablets18 Tablets
Perunit section numbers≤12/Section12/Section
Yarn count range100~250/Filaments250~800/Filaments
Spindle speed10000r/min≤8000r/min
Twist range50~2000T/M50~2000T/M


(Feedin)Windingsize

Φ090*380 wire shell tube

Φ130*380 wire shell tube
Winding bobbin sizeEdged tubeEdged tube
Winding weight6KG/4KG/3KG/2KG6KG/4KG
Winding speed≤80m/min≤80m/min
Spindle selectionΦ90Φ110
Power confingurationDepending on the configuration, the power configuration is 15KW-30kWDepending on the configuration, the power configuration is 15KW-30kW
Transmission modeDragon belt collective driveDragon belt collective drive
Standard spindle number240Ingot216Ingot
Overall sizeLength width =24800*730Length width =27750*730
