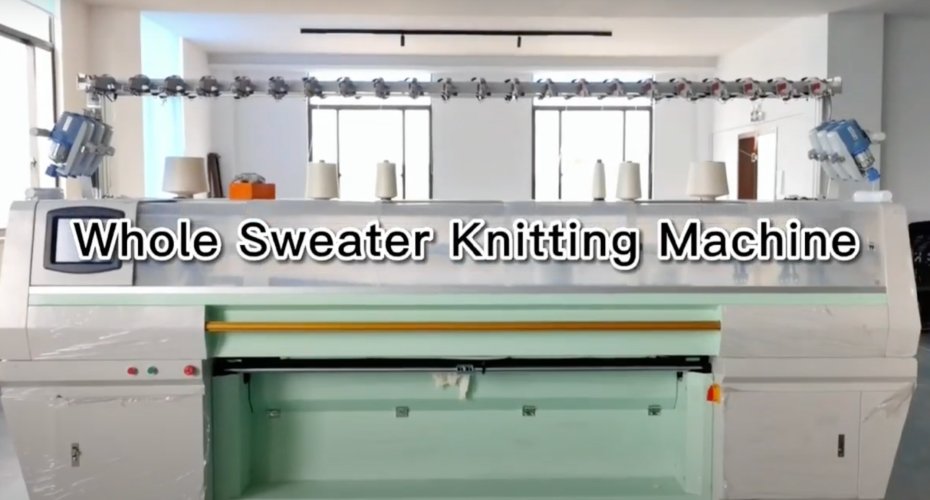

Flat Knitting Machine

72,80 inch

WHOLE GARMENT SYSTEM

Controlled by servo-motor with 128sections optional, max speed reach 1.6m/s.

Pointelle,tuck,intarsia,full needle ,all kinds of jacquard,appparent shape,open needle,hidden shape and so on.

Controlled by servo-motor racking within 2 inches and withfine adjusting function. Transfer and knit occurs synchronous, more efficient.

Controlled by stepping motor, 128 section stitch select-able adjustablescope supported by subdivision technology:

0-650, the stitch of the knitwear can be accurately controlleed.

Combined design, single or double cam system all can transfer togetheor separately. Also one cam do transfer,

another cam system for knitting, which will achieve high production.

Advanced encoder reading pin.8-stage selecting needle setup compeosed of special electromagnet is regarded as

efficient full width jacquard needle selector.which can be installed ofremoved simply from the carriage and maintained easily.

The transverse tension and front and rear bed are separately controlled. It can realize the independent control of a

variety of pulling forces and front and rear beds in one line, and meet tthe pulling force requirements of different

organizations. It is a necessary configuration for whole garmhent.

The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking,

needle breakage, error programming occur, also set up the safety auto-lock protect device.

Automatic refueling: Control the refueling time and frequencyby setting the time. The oil pump lubricate the jack and

long jack needle on the needle bed automatically to reducce the wear of the machine and increase its service life.

Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock

stop.

3500*1000*1800mm, 1450kgs(72inch);3700*1000*1000*1800mm,1500kgs(80inch)
